Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: BETVIS(China)
  • Model Number: BV-84
  • Type: Media Player
  • Application: Indoor
  • Panel Size: 42 Inch
  • Max Resolution: 1920*1080
  • Viewing Angle: 178 /178
  • Pixel Pitch: 0.4845(H)*0.4845 (V)
  • Color: 16.7M, Black
  • Contrast Ratio: 4000:1
  • Brightness: 450cd/m2
  • Response Time: 5ms
  • Input Voltage: DC12V
  • MTBF: 10,000 hours
  • Processor: Quad Core ARM 1.6GHz Cortex-A9
  • Platform: Non-PC based
  • High Definition: 1080 Full H.D.
  • Accessories: Power adapter, Remote control, Bracket, Screws, Key, User Manual
  • Network: Ethernet, Wi-Fi, Built-in 3G/4G (optional)
  • Power Input: DC 12V
  • Housing: Metal
  • Life Cycle: 100,000 houres

Packaging & Delivery

Packaging Details 1 unit sample packaging: Standard color carton, measurement 30*20*10cm, weight 2kg.
2 units sample packaging: Standard carton, measurement 30*20*20cm, weight 3.5kg.
20 units batch order packaging: 2 units per inner carton, 10 inner carton per outer carton. Total measurement 95*32*37cm, total weight 30kg.
Delivery Time 7 days



Network Android Digital Signage Media Player BV-84







Overview

Ordinary TV, monitor or screen can easily turn into easy-to-use digital signage by connecting with BV-84 digital signage player. As the mainstream player powered by DSM80 digital signage software, BV-84 features reliable network update, offline mode, scalable I/O interfaces and 1080p FHD display, making itself adaptable for any digital signage project large or small, complex or simple.

With industrial-grade durability and outstanding performance among its peers, BV-84 can be confidently applied to any digital signage application such as retail chain store, supermarket, shopping mall, restaurant, bus, train, hotel, bank, dealer showroom, drugstore, etc.



Main Features

1.3G, Wifi, and Cable Network support
2.Full H.D. 1080P
3.HDMI Output
4.Metal Case and Durable Design
5.Multiple Zone Display
6.Managed by easy Digital Signage Software

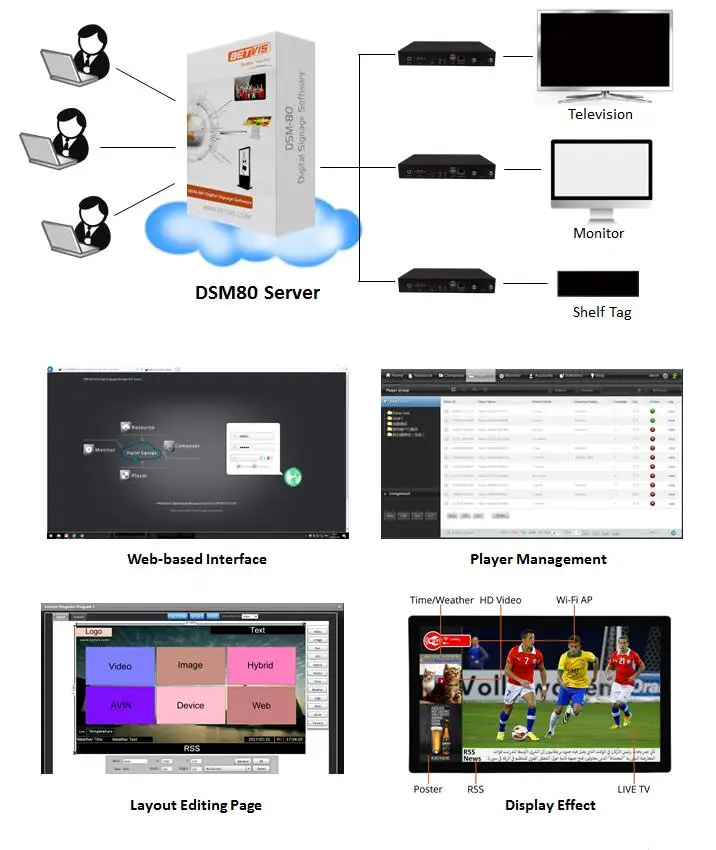

System Diagram



Specification





Software Function

DSM80 is one of the most stable Digital Signage Software that widely used in Asia, it allows everyone to quick and easily build and manage a centrally controlled network of LCD displays, working with the embedded signage media player and, DSM80 solution can work under 24*365 condition and it never get crash.

Screens/Displays controlled by DSM80 player connect to and are controlled from a central location through any IP-based network (include LAN, WAN, wired or wireless, 3G/4G, or even a mix of any of these.). It supports image, video, audio, scrolling message and live news and displays them through high quality digital signal. DSM80 has been tested by amounts of clients, and achieved that more than 9,000 players are online and managed together.

User-Defined Layout

  • User can design different layouts according to different content;
  • Take the layout template or design layout;
  • It supports backround image and music;
  • Time zone can display current time and date;
  • Weather zone display weather type, time, text and logo in 24 hours/48 hours/72 hours;
  • Image zone can be set as static image or select various kinds of image switch effect, including scrolling, cut-in, gird effect, etc;
  • Message zone can be set as static or scrolling text, supports news and RSS;
  • Display logo on the specific location on screen, and logo can overlay other image;
  • There are mutltiple ways to display scrolling message;
  • Set one zone as main playback zone, and the program will end at the end of this zone;
  • According to program, it can set layout size, including landscape and portrait mode.


Playback Content

  • Playback content includes video, image, audio, message, sustitle, time, date, weather, news, etc;
  • Video formats include WMV, MPG2/4, RMVB, DAT, VOB, XVID, DIVX, AVI, TS, H.263/H.264, MOV, FLV, etc in 1080P decode;
  • Image formats include almost all of image formats, such as BMP, JPG, GIF, PNG, etc;
  • Message can set font, size, color, and background color or transparant background;
  • Time and date in Chinese, English and other formats, it sync with server and is accurated by minute;


Content Management

  • Content can be managed and classified by category;
  • Category type is similar to Windows explorer;
  • Create/delete/rename a category on server;
  • Upload content to a category according to different classifications;
  • Upload different content from local hard disk or network folder;
  • Support continuous upload from breakpoint;
  • Set download time of player content to avoid busy hour and keep system stability;


Program and Compaign

  • Contain Idel-Loop campaign, On-Demand campaign and Inter-Cut campaign;
  • Play or pause a program if you want and the pause program will not be deleted from player;
  • The priority of campaign: Inter-Cut campaign>On-Demand campaign>Idle-Loop campaign;
  • The Idle-Loop campaign can be repeated every several days, for example the reperated days are a week, and it will display different programs everyday;
  • Inter-Cut time, end time, playback counts of Inter-Cut campaign are optional;
  • On-Demand campaign is triggered by hardware or software command, and displays one or several programs as the set count;


Group Management

  • User management players by group according to the details, for example location, network, commercial, player model, etc;
  • According to setting player group and campaigning programs, it can satisfy various complcated requirements of clients;
  • Grouping is in tree-directory structur, allows multilevel group, easy to manage and understand;
  • Without specific command, all of settings and content of players are same in the same group, such as playback content, hardware configurations, download time, etc;
  • User can send specific configuration to one or several player in the same group according to the details.


Security

  • Strict audit system to manage playback content and avoid mistake;
  • According to manage content in details, such as preview uploaded content and audit them, approve/refuse current campaign, user can manage player;
  • Manage the access level of users by defining the users’roles;
  • Admin can set up users, and select roles to different user;
  • User login server through IP address via web browser, input user name and passwor and then manage the system;
  • Default user name and password are availble.


Player Configuration

  • Get rid of manual work and increase player life cycle through setting power on/off time; Select network connection way and set network configuration, set DHCP/Static IP address, WiFi authentication/encryption method, 3G account, etc;
  • Set video output and resolution, such as CVBS, VGA, HDMI, YpbPr, 1080P, 720P, 480P, etc;
  • Adjust volume at different time;
  • Upgrade firmware through requirements.


Playback Monitoring

  • Playback monitoring function make user learn the current and history situation of player without going to installation place;
  • When there is something wrong with the player or network of player, it will inform the related administrator to let them know well about system;
  • Remote check player network status, including on/offline status and recent hearbeat time, etc;
  • Check the history hearbeat time of some player;
  • Check system log, such as power on time, download start/end time, etc;
  • Get player online rate directly;
  • Auto alarm when player has been offline for a long time, or improper power on/off, etc;
  • Check palyback status by taking screenshot.


Statistics

  • Statistics function make users get the plaback information and offer reliable data to study system;
  • Check the playback list during certain time and in some group, including playback counts,playback start/off time, etc;
  • System will get the playback counts and time of some file automatically;
  • Check statistics by player name and file name;
  • Get player availability ratio, means that how much percent normal working time of a player of a group player take in gross time during certain time.


Live News

  • Player realizes to display real-time message through the interface connection with server;
  • Switch real-time content from server;
  • Convert real-time message to form, image and other stypes to increase message arrival rate, more advanced than traditional mode.

Touch Support

  • Set touch zone and area
  • Set touch action



Packaging & Shipping



FAQ



1.Does BV-84 player have VESA wall mounting? How can I install it?
No, it doesn’t. It can be fixed on wall with our brackets by screws.


2.What is the embedded OS of BV-84 player?
The player OS is Android 4.2.


3.Can I install other software on your players?
Yes, we can offer OEM player.


4.Can I lock the player with a password or something to protect the content?
Yes, you can. You can set password to protect the content.


5.Can I remote manage players from a central office?
Yes, you can. Below are the steps.
1.Configure players with right network and server settings
2.Install players and connect it to internet.
3.Manage players through DSM80 software from the central office.


6.How many screens that one BV-84 player can connect?
Usually, our recommendation is one BV-84 player per screen. But you can connect one BV-84 player to several screens through HDMI splitter if the screens are near to each other.


7.Can I use the players as standalone player and update content through USB flash drive?
Yes, it can work as a standalone player.


8.Does BV-84 player need to connect with the server all the time?
It is unnecessary. BV-84 player will download new content, store them in the internal storage and then play them as scheduled playlist from internal storage. You can disconnect the network after download is finished.


9.What is the internal storage of BV-84 player?
It's with NAND 8GB flash. And we will offer 16GB SD card.


10.Is the size of internal storage enough? How to delete content?
Yes we think so as the player only storage the recent contents, and it will automatically clear unnecessary contents.


11.Does BV-84 player support flash file?
No.


12.Does BV-84 player support portrait mode?
Yes, it supports portrait mode very well.


13.Does BV-84 player support 16:9 ratio?
Yes, it supports both 16:9 and 4:3.


14.Does BV-84 player support full HD 1080P resolution?
Yes, BV-84 player supports 1080P resolution through HDMI output.


15.Does BV-84 player support RSS?
Yes, RSS is supported.


16.Does BV-84 player support weather report?
Yes.


17.Does BV-84 player support multi-language text message?
Yes, it supports all language.


18.Does BV-84 player support multiple zone display?
Yes, BV-84 player supports multiple zone display. It supports one video zone, one time and date zone, several image zones, several message zones.


19.Can I display live TV through BV-84 player?
Yes through AV-in.


20.Will you update BV-84 player in future? How can I update it?
Yes, we will send you update package for free after you purchase the players and then tell you the exact way in details.


21.Can I run the BV-84 player 24x7? Is it robust enough?
Yes, BV-84 player can work 24x7. As it is embedded system and fanless design, the system is very stable and the player is definitely robust enough.


22.What is the video output of BV-84 player?
There are HDMI, VGA video output.


23.How can I connect BV-84 player to my monitors/TVs?
Connect BV-84 player to your monitors/TVs through video and audio cable. It is up to what video input of your monitors/TVs.


24.To run BV-84 player, what accessories do I need to purchase separately?
Power supply and other accessories will be sent along with player. You just need to purchase the video and audio cable.


25.How long time it would take to upload a file (assuming the files are quite big in size)?
It is up to the network speed. But I recommend you to prepare more time (at least 24 hours if the file is big). The player will still play content when downloading the new file. It won’t disturb the normal playback.


26.BV-84 player accept SD card?
Yes, we will send you default 8GB SD card.


27.How many year warranty SC 8028 ?
One year.


28.How many kg for box package sc 8028?
It is about 2kg. Net Weight 1kg. It is only a player. But the whole package includes remote controller, power cord, power cable, power adaptor, etc.


29.How the BV-84 work?
Install the software on a dedicated PC, and then you can manage the players from the computer through internet


30.What is your network access?
Our network access solution is through RJ45 port.


31.What band is your display?
Our display is our own brand, and we use LG, Sumsung, Chimei, AUO lcd panels in our products.


32.Would it be possible to place the player behind the screen?
To install BV-84 media player, you can fix it on wall through screws. But you can’t place it behind the screen.
